Piper Aircraft PA-31 instrument panel

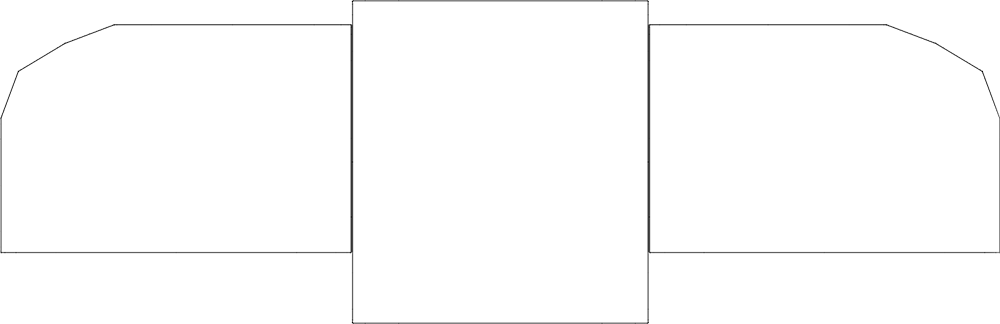

The PA-31 panel template at the panel's dimensions, 46.94 × 15.15 inches. Lay out your instruments and avionics on it to scale, export the picture and the equipment list, or send it to our shop for CAD, Cut, Paint & Label.
27 panels laid out on this template
Also written PA31 or PA 31.

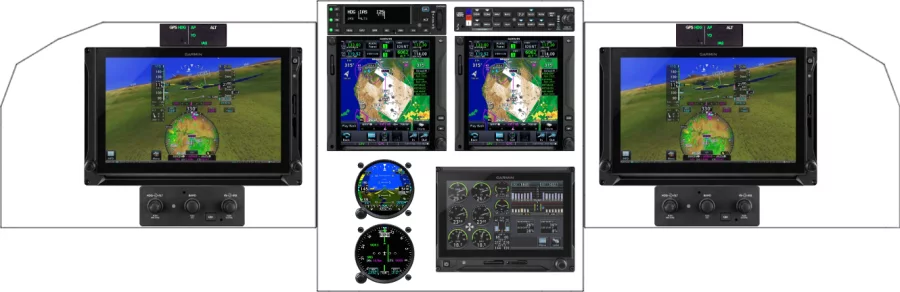

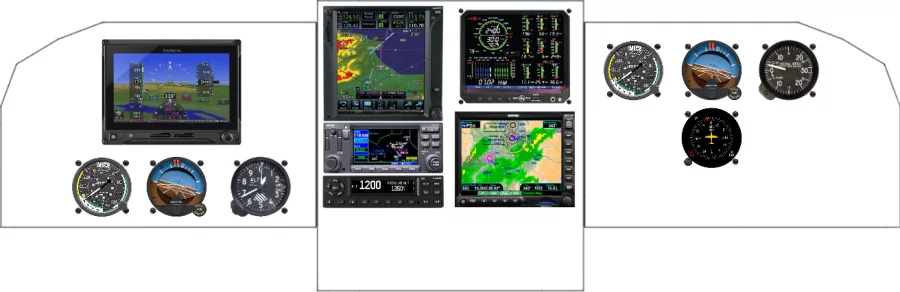

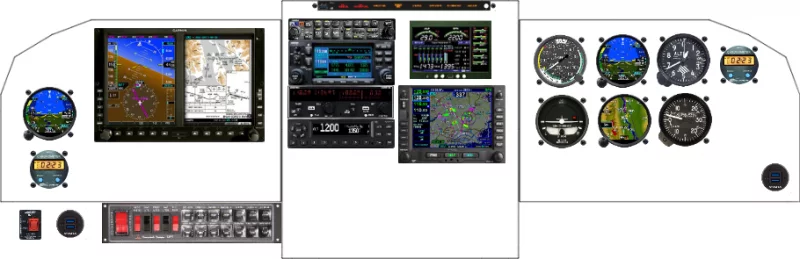

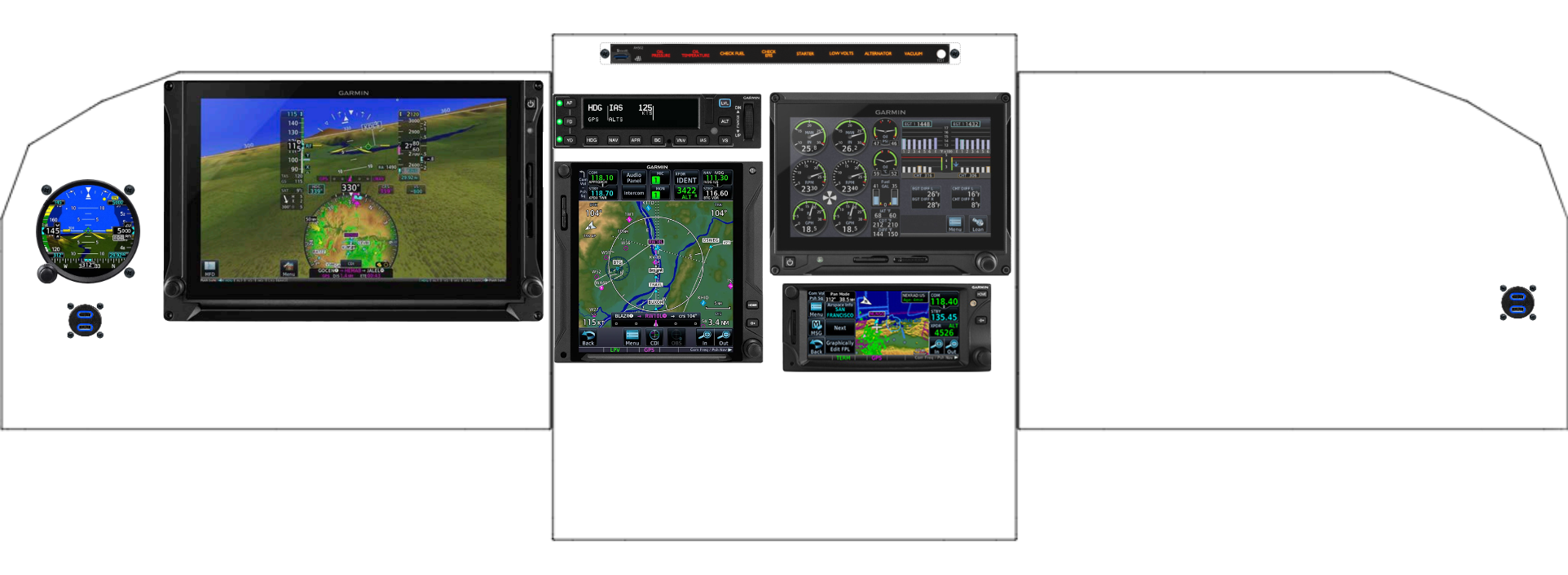

Recent PA-31 panel designs
Exported by builders from the Panel Designer, newest first.
PA-31 for sale
Selling a PA-31? List it on the Hangar Flying Marketplace, where builders and owners look.
What builders put in a PA-31 panel
The equipment placed most often across the 27 designs on this template. Counts, never names.
| Equipment | Designs | Share |
|---|---|---|
| Garmin International, Inc GI 275 ADI | 8 | 30% |
| Garmin International, Inc GTX 345 | 7 | 26% |
| Garmin International, Inc GTN 750Xi | 6 | 22% |
| Garmin International, Inc GFC 600 | 6 | 22% |
| Garmin International, Inc GNS 430W | 5 | 19% |
| Falcon Gauge Vertical Speed Indicator | 5 | 19% |
| Falcon Gauge Altimeter 3" | 5 | 19% |
| Falcon Gauge Airspeed Indicator 3" | 5 | 19% |
Other Piper Aircraft panels
From layout to fabricated panel
Lay out the PA-31 panel in the Panel Designer, then send it to our shop for CAD, Cut, Paint & Label.
